Schur マニュアルの問題を解く その4

6-6節 Exercises 7-10

問7

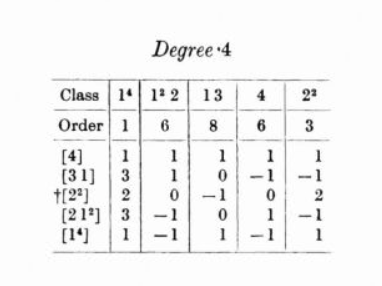

7. Use the command \mathrm{p\_to\_s} to construct the character table of the symmetric group S_4.

  • S4 の指標表つくり

共役類ρは power sum 対称関数、規約表現は Schur 関数で表わされるとして、その変換行列を求めればよい。結果は縦に求まる。

f:id:fortran66:20171210135515p:plain

DP> sfn
Schur Function Mode
SFN> p_to_s 1^4
{4} + 3{31} + 2{2^2} + 3{21^2} + {1^4}
SFN> p_to_s 1^22
{4} + {31} - {21^2} - {1^4}
SFN> p_to_s 13
{4} - {2^2} + {1^4}
SFN> p_to_s 4
{4} - {31} + {21^2} - {1^4}
SFN> p_to_s 2^2
{4} - {31} + 2{2^2} - {21^2} + {1^4}
SFN>

問8

8. Show that the command sequence
\mathrm{compare} \,\lambda, \,\mathrm{p\_to\_s} \,\rho \,\,\,\,\,\lambda,\rho \vdash n
brings to the screen the value of the characteristic \chi^\lambda_\rho of S_n.

  • 上記 S4 対称群の指標を例として

上記問7から特定の項を抜き出しているだけ。

SFN> ? compare
 COMPare
     Format:-Comp EXPR1,EXPR2
      Modes:-REP, SFN
 Description:-Compares EXPR1 and EXPR2, and creates a new EXPR in which
              the multiplicities are the products of the corresponding
              multiplicities in EXPR1 and EXPR2.
    Example:-SFN>
        ->comp 42 +31, 5 +4.42 +5.31 +2^2
        4{42} + 5{31}
        SFN>
        ->comp 2.42 -3.31, 5 +4.42 +5.31 +2.2^2
        8{42} - 15{31}
        SFN>

SFN> p_to_s 1^4
{4} + 3{31} + 2{2^2} + 3{21^2} + {1^4}
SFN> compare 4, p_to_s 1^4
{4}
SFN> compare 31, p_to_s 1^4
3{31}
SFN> compare 2^2, p_to_s 1^4
2{2^2}
SFN> compare 21^2, p_to_s 1^4
3{21^2}
SFN> compare 1^4, p_to_s 1^4
{1^4}
SFN>

以下各共役類に対して繰り返し。

問9

9. A person wishes to be able to form the product of two S-functions \lambda and \mu using the Littlewood-Richardson rule retaining only terms whose first part is \leq n. Show that the command sequence

\mathrm{conj \,len \,n \,conj \,o} \,\lambda,\mu

will achieve the desired result.

  • Young 図で考えれば自明

len n は分割 λ の長さ n 以下のものを返す。長さ n ピッタリが欲しい時は -n。
λ={2,1}, μ={4}, n=5 の場合の例を以下に示す。

SFN> o 21,4
{61} + {52} + {51^2} + {421}
SFN> yo last

  OOOOOO   OOOOO   OOOOO   OOOO
  O        OO      O       OO
                   O       O


SFN> yo conj last

  OOO   OOO   OO   OO
  OO    O     OO   O
  O     O     O    O
  O     O     O    O
        O     O    O
                   O


SFN> yo len 5 last

  OOO   OOO   OO
  OO    O     OO
  O     O     O
  O     O     O
        O     O


SFN> yo conj last

  OOOOO   OOOOO   OOOO
  OO      O       OO
          O       O


SFN> last
{52} + {51^2} + {421}
SFN> conj len 5 conj o 21,4
{52} + {51^2} + {421}
SFN>

問10

10. Repeat previous item for the combination of Q-functions.

  • Q-関数よく分からないアル

取りあえず、こういう事かなと。

SFN> ? S_TO_QsymmFn
 S_TO_QsymmFn

     Format:-S_To_Q EXPR
      Modes:-SFN
 Description:-Treats EXPR as a list of S-functions of type S(x,-1) and transforms them into a list of Q-functions.
    Example:-
             SFN>
           ->s_to_q 31
              Q_{4} + Q_{31}
             SFN>

SFN> conj len 5 s_to_q o q_to_sd 21, q_to_sd 4
Q_{321^2} + 2Q_{2^2 1^3} + 2Q_{21^5}
SFN>
