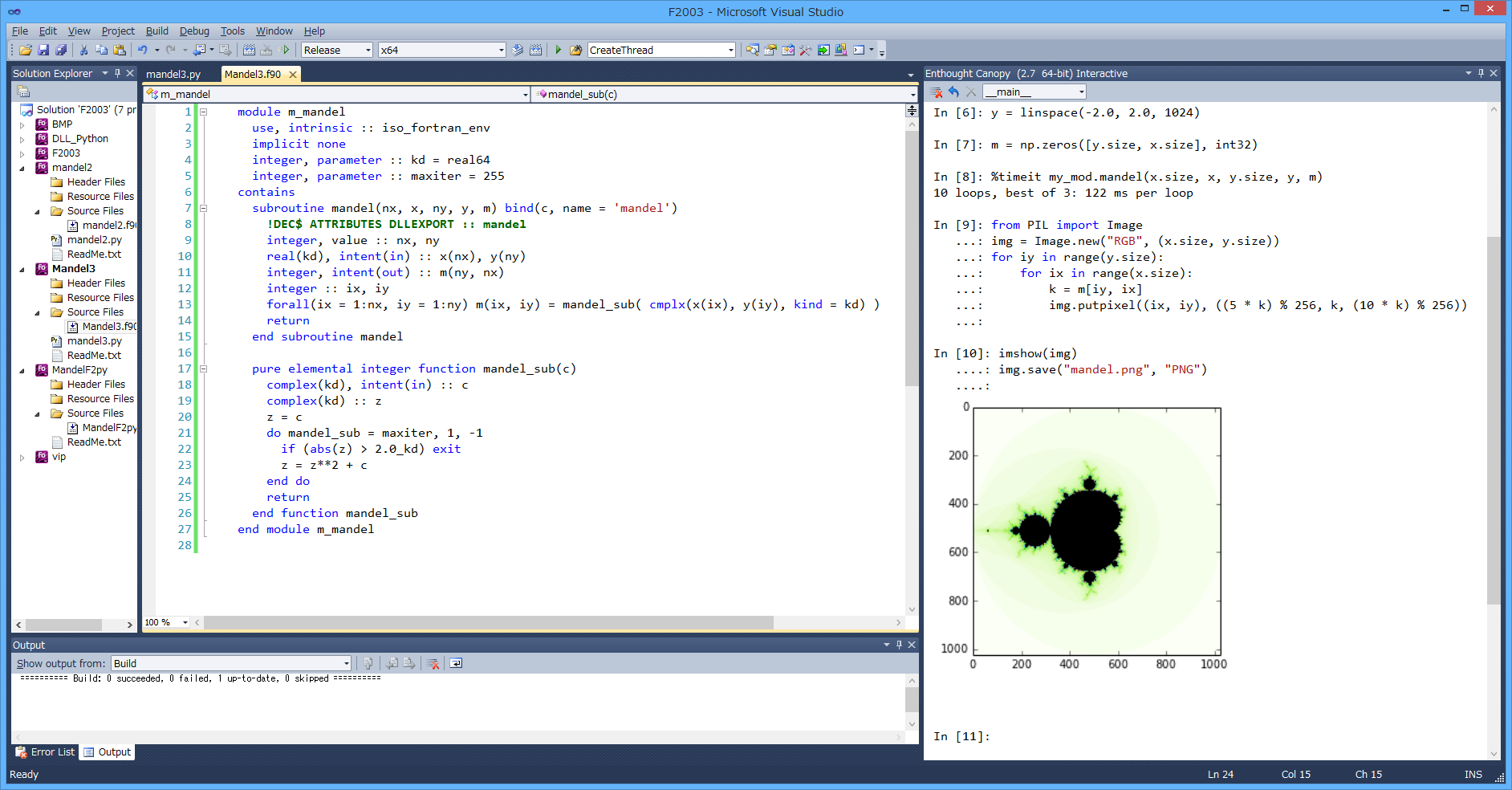

Fortran の 配列を Python 側と DLL で共有して引き渡しています。 Mandelbrot 集合の計算は一瞬で終わりますが、Python で配列をタプルの配列に変換するループが遅すぎてこっちの方で地獄のように時間がかかります。I/O をかませたとしても Fortran 側で BMP で出力したものを Python 側で読み込んだ方がよほど早いです。この辺は配列のデータ構造の変換の問題なので、よく調べれば何とかなると思います。
Fortran ソース・プログラム
x64 RELEASE mode で DLL ライブラリにコンパイルする。
module m_mandel use, intrinsic :: iso_fortran_env implicit none integer, parameter :: kd = real64 integer, parameter :: maxiter = 255 contains subroutine mandel(nx, x, ny, y, m) bind(c, name = 'mandel') !DEC$ ATTRIBUTES DLLEXPORT :: mandel integer, value :: nx, ny real(kd), intent(in) :: x(nx), y(ny) integer, intent(out) :: m(ny, nx) integer :: ix, iy forall(ix = 1:nx, iy = 1:ny) m(iy, ix) = mandel_sub( cmplx(x(ix), y(iy), kind = kd) ) return end subroutine mandel pure elemental integer function mandel_sub(c) complex(kd), intent(in) :: c complex(kd) :: z z = c do mandel_sub = maxiter, 1, -1 if (abs(z) > 2.0_kd) exit z = z**2 + c end do return end function mandel_sub end module m_mandel
Python 側呼び出しプログラム
from ctypes import * my_mod = CDLL("./x64/release/mandel3.dll") my_mod.mandel.argtypes = [ c_int32, np.ctypeslib.ndpointer(dtype=np.float64), c_int32, np.ctypeslib.ndpointer(dtype=np.float64), np.ctypeslib.ndpointer(dtype=np.int32) ] my_mod.mandel.restype = c_void_p x = linspace(-2.0, 2.0, 1024) y = linspace(-2.0, 2.0, 1024) m = np.zeros([y.size, x.size], int32) my_mod.mandel(x.size, x, y.size, y, m) from PIL import Image img = Image.new("RGB", (x.size, y.size)) for iy in range(y.size): for ix in range(x.size): k = m[iy, ix] img.putpixel((ix, iy), ((5 * k) % 256, k, (10 * k) % 256)) imshow(img) img.save("mandel.png", "PNG")
