【Intel Fortran v.19.1】 F2018 対応 do concurrent での変数の局所性指定
追記：R3.3.30 文法チェックには引っかかりませんが、さりとてオプションとしては機能していない感じです。default(none) のチェックも効かず、local も効いてない。
do concurrent ではスレッド並列の並列実行がなされるので、do loop 内の変数のスレッド独立性の問題が出ます。F2008 では block..end block を利用してスレッド独立な変数を局所的に宣言する方法が用意されていましたが、F2018 では OpenMP の影響でしょうか、do concurrent 文の後ろに新たに修飾子が加わって、局所性や値の引継ぎなどが制御できるようになりました。Intel Fortran v.19.1 で実行できるようなので試してみます。
Locality of variables in DO CONCURRENT constructs can now be declared on the DO CONCURRENT statement
help file より
You can specify LOCAL, LOCAL_INIT, SHARED, and DEFAULT (NONE) in the same DO CONCURRENT statement.
実行結果
コンパイル時のオプションで並列化を on/off することで do concurrent の効果をみてみます。計算量が少ないのであまり大きな差は出ていませんが、約二倍のスピードが出ています。(600 vs 300; 単位はシステムクロックのティック数の差だった気がします。)
並列なし
do concurrent time = 4.687500000000000E-002 600
並列あり
do concurrent time = 0.187500000000000 300
ソース・プログラム

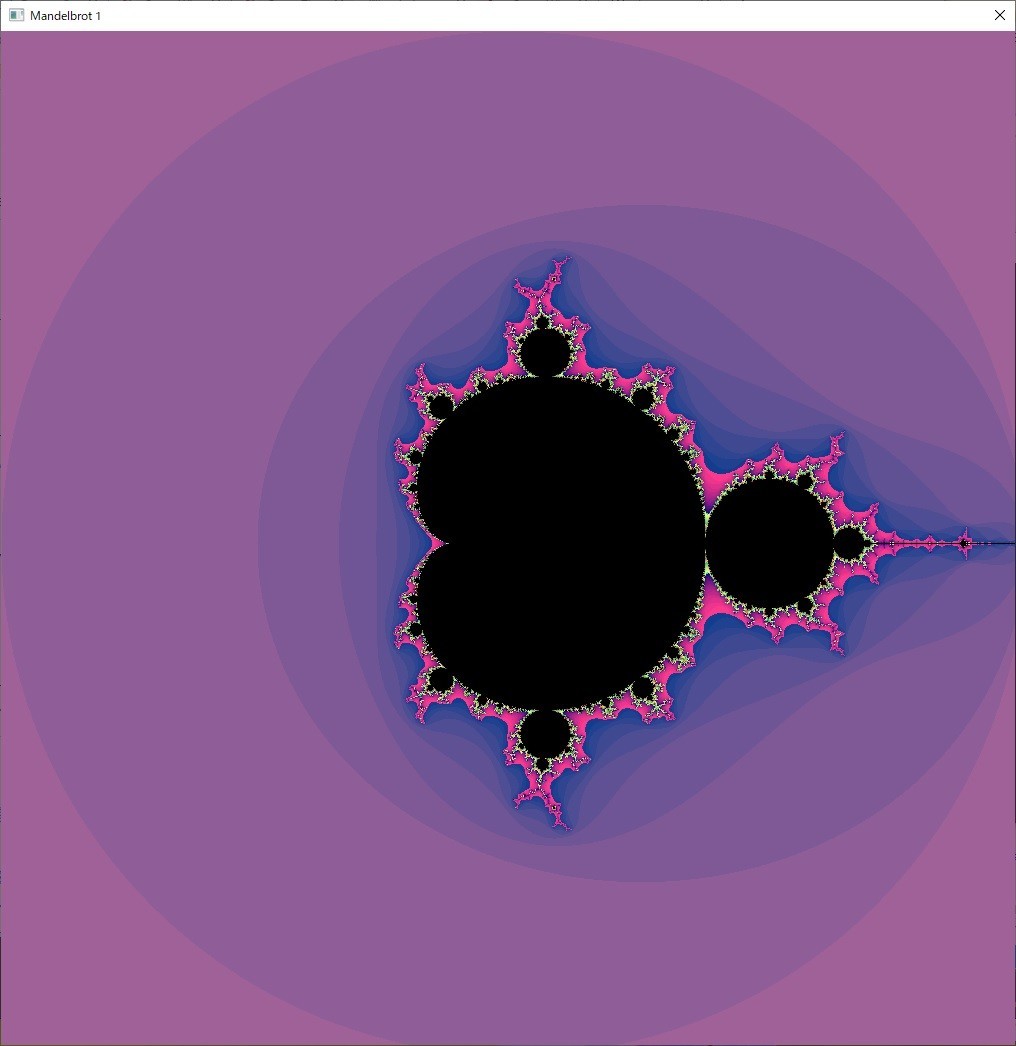

昔作ったプログラムを修正してみます。 ほとんど覚えていないのですが、メモリーリークしているかもしれません。マルチスレッドにすることで win32 で絵をかきつつプログラムの実行を続けていました。その辺よく分かっていないので非推奨 API を使っています。いまは coarray や OpenMP で行けるかもしれません。
64bit windows で動くようにしました。block...end block によりお絵かき部分を分離しました。
計算の胆部分。ループ変数は do concurrent 内で局所宣言します。
call system_clock(it0) call cpu_time(t0) do concurrent (integer::ix = 0:imax, iy = 0:jmax) local(x, y) x = xmin + ix * dx y = ymax - iy * dy ic(ix, iy) = imandel(x, y) end do call cpu_time(t1) call system_clock(it1) print *, ' do concurrent time =', t1 - t0, it1 - it0
コード全体
module m_oop implicit none type :: t_rgb integer :: ir, ig, ib end type t_rgb type, abstract :: t_device character(len = 80) :: title = 'Plotter' integer :: nsize_x = 640, nsize_y = 480 integer :: line_width = 1 type (t_rgb) :: rgb = t_rgb(0, 0, 0) contains procedure (device_on), deferred, pass :: on procedure (device_off), deferred, pass :: off procedure (device_show), deferred, pass :: show procedure (device_pen), deferred, pass :: pen procedure (device_lineTo), deferred, pass :: lineTo procedure (device_moveTo), deferred, pass :: moveTo procedure (device_dot), deferred, pass :: dot end type t_device abstract interface subroutine device_on(self) import :: t_device class(t_device), intent(in out) :: self end subroutine device_on subroutine device_off(self) import :: t_device class(t_device), intent(in) :: self end subroutine device_off subroutine device_show(self) import :: t_device class(t_device), intent(in) :: self end subroutine device_show subroutine device_pen(self, line_width, rgb) import :: t_device, t_rgb class(t_device), intent(in out) :: self integer, intent(in), optional :: line_width type (t_rgb), intent(in), optional :: rgb end subroutine device_pen subroutine device_lineTo(self, ix, iy) import :: t_device class(t_device), intent(in) :: self integer, intent(in) :: ix, iy end subroutine device_lineTo subroutine device_moveTo(self, ix, iy) import :: t_device class(t_device), intent(in) :: self integer, intent(in) :: ix, iy end subroutine device_moveTo subroutine device_dot(self, ix, iy, icol) import :: t_device, t_rgb class(t_device), intent(in) :: self integer, intent(in) :: ix, iy integer, intent(in) :: icol ! type (t_rgb), intent(in) :: rgb end subroutine device_dot end interface end module m_oop module m_win32 use ifwina use ifwinty use ifmt, only : RTL_CRITICAL_SECTION use m_oop implicit none type, extends(t_device) :: t_win32 contains procedure, pass :: on => gr_on procedure, pass :: off => gr_off procedure, pass :: show => gr_show procedure, pass :: pen => gr_pen procedure, pass :: lineTo => gr_lineTo procedure, pass :: moveTo => gr_moveTo procedure, pass :: dot => gr_dot end type t_win32 type :: t_wnd integer (HANDLE) :: hWnd integer (HANDLE) :: hDC integer (LPINT) :: hThread integer (LPDWORD):: id integer (HANDLE) :: hPen type (RTL_CRITICAL_SECTION) :: lpCriticalSection end type t_wnd type (t_wnd) :: wnd contains integer(HANDLE) function WinMain( hInstance, nCmdShow, win32 ) implicit none integer (HANDLE), intent(in) :: hInstance integer (SINT) , intent(in) :: nCmdShow type (t_win32), intent(in) :: win32 type (T_WNDCLASS) :: wc type (T_MSG) :: mesg integer (HANDLE) :: hWndMain integer (BOOL) :: iretb character (LEN = 256) :: ClassName = 'Fortran'//char(0) integer :: iwindow_frame_x, iwindow_frame_y logical, save :: first = .true. ! Init Main window iwindow_frame_x = 2 * GetSystemMetrics(SM_CXFIXEDFRAME) !side line = 6, title bar = 25 iwindow_frame_y = 2 * GetSystemMetrics(SM_CYFIXEDFRAME) + GetSystemMetrics(SM_CYCAPTION) ! if (first) then WinMain = -1 ! Error code wc%lpszClassName = loc(ClassName) ! non-standard Fortran :: LOC(xxx) = TRANSFER(C_LOC(xxx), iii) wc%lpfnWndProc = loc(MainWndProc) ! CALLBACK procedure name wc%style = ior(CS_VREDRAW , CS_HREDRAW) wc%hInstance = hInstance wc%hIcon = NULL wc%hCursor = LoadCursor( NULL, IDC_ARROW ) wc%hbrBackground = ( COLOR_WINDOW + 1 ) if ( RegisterClass(wc) == 0 ) return ! initialize window first = .false. end if ! Init instance WinMain = -2 ! Error code hWndMain = CreateWindow( ClassName, & trim(win32%title)//char(0), & int(ior(WS_OVERLAPPED, WS_SYSMENU)), & CW_USEDEFAULT, CW_USEDEFAULT, & win32%nsize_x + iwindow_frame_x, & win32%nsize_y + iwindow_frame_y, & 0, 0, & hInstance, & NULL ) if (hWndMain == 0) return iretb = ShowWindow( hWndMain, nCmdShow ) iretb = UpdateWindow( hWndMain ) ! Message Loop do while ( GetMessage (mesg, NULL, 0, 0) ) iretb = TranslateMessage( mesg ) iretb = DispatchMessage( mesg ) end do WinMain = mesg%wParam end function WinMain integer (LRESULT) function MainWndProc( hWnd, mesg, wParam, lParam ) !DEC$ ATTRIBUTES STDcall, DECORATE, ALIAS : 'MainWndProc' :: MainWndProc integer (HANDLE) , intent(in) :: hWnd integer (UINT) , intent(in) :: mesg integer (fwParam), intent(in) :: wParam integer (flParam), intent(in) :: lParam ! integer (HANDLE) :: hDC, hBmp integer (BOOL) :: iretb type (T_PAINTSTRUCT) :: ps type (T_RECT) :: rc ! MainWndProc = 0 select case ( mesg ) case (WM_CREATE) wnd%hWnd = hWnd hDC = GetDC(hWnd) wnd%hDC = CreateCompatibleDC(hDC) iretb = GetClientRect(hWnd, rc) hBmp = CreateCompatibleBitmap(hDC, rc%right - rc%left, rc%bottom - rc%top) iretb = SelectObject(wnd%hDC, hBmp) iretb = PatBlt(wnd%hDC, 0, 0, rc%right - rc%left, rc%bottom - rc%top, WHITENESS) iretb = ReleaseDC(hWnd, hDC) iretb = DeleteObject(hBmp) case (WM_DESTROY) call EnterCriticalSection( loc(wnd%lpCriticalSection) ) iretb = DeleteObject( wnd%hDC ) call PostQuitMessage( 0 ) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) case (WM_PAINT) call EnterCriticalSection( loc(wnd%lpCriticalSection) ) hDC = BeginPaint( wnd%hWnd, ps ) iretb = GetClientRect( wnd%hWnd, rc ) iretb = BitBlt(hDC, 0, 0, rc%right - rc%left, rc%bottom - rc%top, wnd%hDC, 0, 0, SRCCOPY) iretb = endPaint( wnd%hWnd, ps ) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) case (WM_RBUTTONUP) call EnterCriticalSection( loc(wnd%lpCriticalSection) ) iretb = DeleteObject( wnd%hDC ) call PostQuitMessage( 0 ) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) case default MainWndProc = DefWindowProc( hWnd, mesg, wParam, lParam ) end select end function MainWndProc subroutine gr_on(self) use IFMT, only : CreateThread ! multithread module class(t_win32), intent(in out) :: self integer (BOOL) :: iretb integer (HANDLE) :: hBmp type (T_RECT) :: rc call InitializeCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC wnd%hThread = CreateThread(NULL, 0_LPINT, Thread_Proc, NULL, CREATE_SUSPENDED, wnd%id) iretb = SetThreadPriority(wnd%hThread, THREAD_PRIORITY_BELOW_NORMAL) iretb = ResumeThread(wnd%hThread) call sleep(100) ! wait for Window initialization iretb = GetClientRect(wnd%hWnd, rc) hBmp = CreateCompatibleBitmap(wnd%hDC, rc%right - rc%left, rc%bottom - rc%top) iretb = SelectObject(wnd%hDC, hBmp) iretb = DeleteObject(hBmp) iretb = PatBlt(wnd%hDC, 0, 0, rc%right - rc%left, rc%bottom - rc%top, WHITENESS) wnd%hPen = CreatePen(PS_SOLID, 1, 0) contains integer (LONG) function Thread_Proc(lp_ThreadParameter) ! !DEC$ ATTRIBUTES STDcall, ALIAS:"_thread_proc" :: Thread_Proc integer (LPINT), intent(in) :: lp_ThreadParameter integer (LPINT):: hInst hInst = GetModuleHandle(NULL) Thread_Proc = WinMain(hInst, SW_SHOWNORMAL, self) end function Thread_Proc end subroutine gr_on subroutine gr_off(self) class(t_win32), intent(in) :: self integer (BOOL) :: iretb integer (DWORD) :: iwait iwait = INFINITE call gr_show(self) iretb = DeleteObject(wnd%hPen) iretb = WaitForSingleObject(wnd%hThread, iwait) iretb = CloseHandle(wnd%hThread) iretb = PostMessage(wnd%hWnd, WM_DESTROY, NULL, NULL) wnd%hThread = NULL call DeleteCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC end subroutine gr_off subroutine gr_show(self) class(t_win32), intent(in) :: self integer (BOOL):: iretb call EnterCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC iretb = InvalidateRect(wnd%hWnd, NULL, FALSE) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC end subroutine gr_show subroutine gr_pen(self, line_width, rgb) class(t_win32), intent(in out) :: self integer, intent(in), optional :: line_width type (t_rgb), intent(in), optional :: rgb integer (BOOL) :: iretb associate( rgb_ => self%rgb, line_width_ => self%line_width ) if ( present(rgb) ) rgb_ = rgb if ( present(line_width) ) line_width_ = line_width call EnterCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC iretb = DeleteObject(wnd%hPen) wnd%hPen = CreatePen(PS_SOLID, line_width_, irgb(rgb_)) iretb = SelectObject(wnd%hDC, wnd%hPen) iretb = MoveToEx(wnd%hDC, 0, 0, NULL) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC end associate contains integer function irgb(rgb) type(t_rgb), intent(in) :: rgb irgb = rgb%ir + (rgb%ig + (rgb%ib * 256)) * 256 end function irgb end subroutine gr_pen subroutine gr_moveTo(self, ix, iy) class(t_win32), intent(in) :: self integer, intent(in) :: ix, iy integer (BOOL):: iretb call EnterCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC iretb = MoveToEx(wnd%hDC, ix, iy, NULL) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC end subroutine gr_moveTo subroutine gr_lineTo(self, ix, iy) class(t_win32), intent(in) :: self integer, intent(in) :: ix, iy integer (BOOL):: iretb call EnterCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC iretb = LineTo(wnd%hDC, ix, iy) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC end subroutine gr_lineTo subroutine gr_dot(self, ix, iy, icol) class(t_win32), intent(in) :: self integer, intent(in) :: ix, iy, icol integer (BOOL):: iretb call EnterCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC iretb = SetPixel(wnd%hDC, ix, iy, icol) call LeaveCriticalSection( loc(wnd%lpCriticalSection) ) ! non-standard Fortran :: LOC end subroutine gr_dot end module m_win32 module m_plot use m_oop use m_win32 implicit none private public :: t_rgb, t_device, t_win32 end module m_plot module m_mandel implicit none integer, parameter :: kd = kind(0.0d0) contains pure elemental integer function imandel(x, y) real(kd), intent(in) :: x, y real(kd) :: a, b, a2, b2 integer :: icount a = x b = y a2 = a * a b2 = b * b icount = 150 !maxiter do while (a2 + b2 <= 4.0_kd .AND. icount > 0) b = 2.0_kd * a * b - y a = a2 - b2 - x a2 = a * a b2 = b * b icount = icount - 1 end do imandel = icount end function imandel end module m_mandel program Mandel use m_mandel implicit none !integer, parameter :: kd = SELECTED_REAL_KIND(15) integer, parameter :: m = 1000 integer :: nwinx = 1024, nwiny = 1024 integer :: i, j, imax, jmax, maxiter, icount real (kd) :: xmin, xmax, ymin, ymax real (kd) :: xmin1, xmax1, ymin1, ymax1 real (kd) :: x, y, a, b, a2, b2, dx, dy real (kd) :: t0, t1 integer, allocatable :: ic(:, :) integer :: icol(0:m), it0, it1 ! xmin = -2.0d0 !1.10950d0 xmax = 2.0d0 !1.10951d0 ymin = -2.0d0 !0.24758d0 ymax = 2.0d0 !0.24759d0 maxiter = 252 ! dx = xmax - xmin dy = ymax - ymin if (dx <= 0.0_kd .OR. dy <= 0.0_kd .OR. maxiter <= 0 .OR. maxiter > M) stop 'input error' if (dx * nwinx > dy * nwiny) then imax = nwinx jmax = nint(nwinx * dy / dx) else imax = nint(nwiny * dx / dy) jmax = int(nwiny) end if ! dx = dx / real(imax, kd) dy = dy / real(jmax, kd) icol(0) = 0 ! black j = irgb(255, 255, 255) do i = maxiter, 1, -1 icol(i) = j if (j > 1) j = j - irgb(255, 255, 255) / maxiter end do ! allocate( ic(0:imax, 0:jmax) ) ! call system_clock(it0) call cpu_time(t0) do concurrent (integer::ix = 0:imax, iy = 0:jmax) local(x, y) x = xmin + ix * dx y = ymax - iy * dy ic(ix, iy) = imandel(x, y) end do call cpu_time(t1) call system_clock(it1) print *, ' do concurrent time =', t1 - t0, it1 - it0 ! ! plotter ! block use m_plot class(t_device), allocatable :: fig type(t_rgb), parameter :: rgb_black = t_rgb(0, 0, 0) fig = t_win32('Mandelbrot 1', imax, jmax, 1, rgb_black) call fig%on() do i = 0, imax do j = 0, jmax call fig%dot(i, j, icol(ic(i, j))) end do call fig%show() end do call fig%off() end block contains integer function irgb(ir, ig, ib) integer, intent(in) :: ir, ig, ib irgb = ir + (ig + (ib * 256)) * 256 end function irgb end program Mandel
