ARToolKit でローレンツ・アトラクターに影をつける。

OpenGL の範囲内で ARToolKit の像に影を付けることを目標とします。

適当にググったところ、以下のページに行き当たりました。簡潔な説明で非常に参考になります。単純な幾何学での導出がされていて理解しやすいです。実際のプログラム例もあって助かりました。（ただ、ベクトルの内積や行列とベクトルの積、テンソル積などが区別なく全部『*』の記号で表されているので読み分ける必要があります。）

- 理論http://son-son.sakura.ne.jp/programming/opengl_1.html
- 実践http://son-son.sakura.ne.jp/programming/opengl_2.html

ここでは影は幾何光学的な射影の範囲で求めており、回折などの波動光学的な扱いは考慮していません。
式の上では射影の有効演算子が、光源ベクトルと射影面の法線ベクトルの内積とテンソル積の和の形に取れるのがキモのようです。

１０行ぐらい付け足せばおｋかと思ったのですが、今の場合はそのままではうまくいきませんでした。影の形は適切に変化しているようなのですが、影の位置が光源の移動によらずに原点にとどまってしまいました。私のいい加減な OpenGL の知識では、それが OpenGL の座標変換の問題なのか ARToolKit を使ったために暗黙に行われている処理の為なのか、よく分かりません。

ここでは半経験的に、もっともそうな座標移動操作を加えておきました。それっぽい位置に影を付けているような気もしますが、正しいのか分かりません。理解してません、すいませんｗ

CALL glTranslatef(-xl * ABS(xl / zl), -yl * ABS(yl / zl), 0.0)   ! ?

追記：2009-2-19　理解しましたｗ　この日の結果は間違いです。詳しくは 2009-2-19 の日記で。

誤解の主たる理由

glutSolidCube 等の glut 系の図形描画ルーチンは座標原点を暗黙に動かしているようで、glutSolidCube 等には、ここで用いた射影演算子をそのままでは適用できないようです。
影の生成式での第4成分（ｗ成分）の意味を誤解していました。

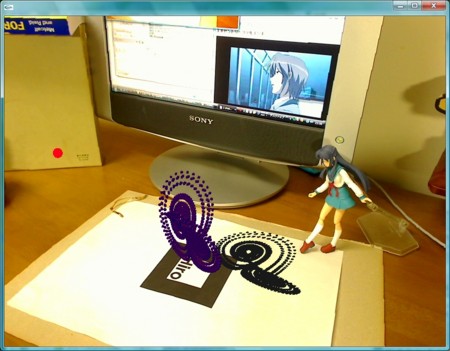

Lorenz Attractor とその影

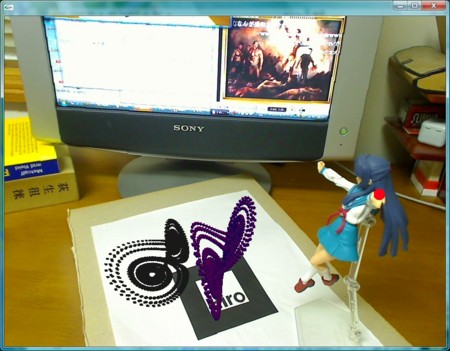

- テスト版

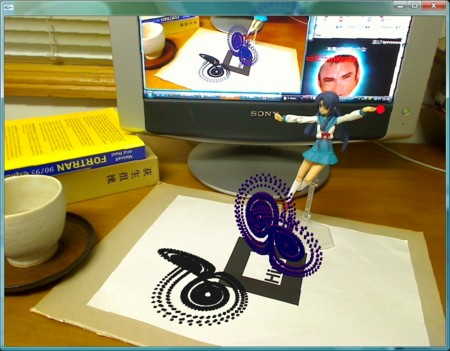

Lorenz Attractor とその影および光源
- 赤い点が光源の位置に対応しています。

光源の種類としては平行光線を与えています。

ローレンツ・アトラクターの裏表での光の当たり具合の差が以前より分かりにくくなりましたが、途中色々パラメータをいじりすぎたので原因が分かりませんｗ

Fortran Source

以下のソースコードでは、C言語とのBINDINGのところと配列生成子記号（[,]）、IMPORT 命令に Fortran2003 の機能を用いています。
以下のプログラムは定式化が間違っているので、正しい結果を与えません。

MODULE m_ART
USE, INTRINSIC :: ISO_C_BINDING
USE opengl_gl
USE opengl_glu
USE opengl_glut
IMPLICIT NONE
!---- TYPE definitions ---------------------------------
TYPE, BIND(C) :: t_ARParam
 INTEGER(C_INT) :: ixsize, iysize
 REAL(C_DOUBLE) :: dmat(4, 3)
 REAL(C_DOUBLE) :: dist_factor(4)
END TYPE
!
TYPE, BIND(C) :: t_ARMarkerInfo
 INTEGER(C_INT) :: iarea
 INTEGER(C_INT) :: id
 INTEGER(C_INT) :: dir
 REAL(C_DOUBLE)  :: cf
 REAL(C_DOUBLE)  :: pos(2)
 REAL(C_DOUBLE)  :: dline(3, 4)
 REAL(C_DOUBLE)  :: vertex(2, 4)
END TYPE
!---- global variables ---------------------------------
INTEGER(C_INT) :: ithresh = 100
INTEGER(C_INT) :: icount = 0
INTEGER(C_INT) :: ipatt_id
REAL(C_DOUBLE) :: patt_width = 80.0_c_double
REAL(C_DOUBLE) :: patt_center(2) = (/0.0_c_double, 0.0_c_double/)
REAL(C_DOUBLE) :: patt_trans(3, 4)
INTEGER(C_INT) :: ixsize, iysize
TYPE(t_ARParam) :: cparam
!---- INTERFACE BLOCK -----------------------------------
INTERFACE
 SUBROUTINE arVideoCapStop() BIND(C, NAME = 'arVideoCapStop')
 END SUBROUTINE arVideoCapStop
!
 SUBROUTINE arVideoClose() BIND(C, NAME = 'arVideoClose')
 END SUBROUTINE arVideoClose
!
 SUBROUTINE argCleanup() BIND(C, NAME = 'argCleanup')
 END SUBROUTINE argCleanup
!
 INTEGER(C_INT) FUNCTION arVideoGetImage() BIND(C, NAME = 'arVideoGetImage')
 USE, INTRINSIC :: ISO_C_BINDING
 END
!
 SUBROUTINE arUtilSleep(i) BIND(C, NAME = 'arUtilSleep')
 USE, INTRINSIC :: ISO_C_BINDING
 INTEGER(C_INT), VALUE :: i
 END
!
 SUBROUTINE arUtilTimerReset() BIND(C, NAME = 'arUtilTimerReset')
 USE, INTRINSIC :: ISO_C_BINDING
 END
!
 SUBROUTINE argDrawMode2D() BIND(C, NAME = 'argDrawMode2D')
 END
!
 SUBROUTINE argDispImage( iptr, i, j ) BIND(C, NAME = 'argDispImage')
 USE, INTRINSIC :: ISO_C_BINDING
 INTEGER(C_INTPTR_T), VALUE :: iptr
 INTEGER, VALUE :: i, j
 END
!
 INTEGER(C_INT) FUNCTION arDetectMarker( iptr, i, mark, k ) BIND(C, NAME = 'arDetectMarker')
 USE, INTRINSIC :: ISO_C_BINDING
 IMPORT :: t_ARMarkerInfo
 INTEGER(C_INTPTR_T), VALUE :: iptr
 INTEGER(C_INT)     , VALUE :: i
 TYPE(t_ARMarkerInfo), POINTER :: mark(:)
 INTEGER(C_INT) :: k
 END
!
 SUBROUTINE arVideoCapNext() BIND(C, NAME = 'arVideoCapNext')
 END
!
 SUBROUTINE argSwapBuffers() BIND(C, NAME = 'argSwapBuffers')
 END
!
 SUBROUTINE arGetTransMat(ptr, d1, d, d2) BIND(C, NAME = 'arGetTransMat')
 USE, INTRINSIC :: ISO_C_BINDING
 TYPE(C_PTR), VALUE :: ptr
 REAL(C_DOUBLE), VALUE :: d
 REAL(C_DOUBLE):: d1(2), d2(3, 4)
 END
!
 SUBROUTINE argDrawMode3D() BIND(C, NAME = 'argDrawMode3D')
 END SUBROUTINE argDrawMode3D
 !
 SUBROUTINE argDraw3dCamera(ix, iy) BIND(C, NAME = 'argDraw3dCamera')
 USE, INTRINSIC :: ISO_C_BINDING
 INTEGER(C_INT), VALUE :: ix, iy
 END
 !
 SUBROUTINE argConvGlpara(x, y) BIND(C, NAME = 'argConvGlpara')
 USE, INTRINSIC :: ISO_C_BINDING
 REAL(C_DOUBLE) :: x(4, 3), y(4, 4)
 END
!
 SUBROUTINE arVideoCapStart() BIND(C, NAME = 'arVideoCapStart')
 END
!
 SUBROUTINE argMainLoop( i, j, k ) BIND(C, NAME = 'argMainLoop')
 USE, INTRINSIC :: ISO_C_BINDING
 INTEGER, VALUE :: i
 TYPE(C_FUNPTR), VALUE :: j, k
 END
!
 INTEGER(C_INT) FUNCTION arVideoOpen(text) BIND(C, NAME = 'arVideoOpen')
 USE, INTRINSIC :: ISO_C_BINDING
 CHARACTER(C_CHAR) :: text(*)
 END
!
 INTEGER(C_INT) FUNCTION arVideoInqSize(ix, iy) BIND(C, NAME = 'arVideoInqSize')
 USE, INTRINSIC :: ISO_C_BINDING
 INTEGER(C_INT) :: ix, iy
 END
!
 INTEGER(C_INT) FUNCTION arParamLoad(text, i, xparam) BIND(C, NAME = 'arParamLoad')
 USE, INTRINSIC :: ISO_C_BINDING
 IMPORT :: t_ARParam
 CHARACTER(C_CHAR) :: text(*)
 TYPE(t_ARParam) :: xparam
 INTEGER(C_INT), VALUE :: i
 END
!
 SUBROUTINE arParamChangeSize(xparam, i, j, yparam) BIND(C, NAME = 'arParamChangeSize')
 USE, INTRINSIC :: ISO_C_BINDING
 IMPORT :: t_ARParam
 TYPE(t_ARParam) :: xparam, yparam
 INTEGER(C_INT), VALUE :: i, j
 END
!
 SUBROUTINE arInitCparam(xparam) BIND(C, NAME = 'arInitCparam' )
 IMPORT :: t_ARParam
 TYPE(t_ARParam) :: xparam
 END
!
 SUBROUTINE arParamDisp(xparam) BIND(C, NAME = 'arParamDisp')
 IMPORT :: t_ARParam
 TYPE(t_ARParam) :: xparam
 END
!
 INTEGER(C_INT) FUNCTION arLoadPatt(text) BIND(C, NAME = 'arLoadPatt')
 USE, INTRINSIC :: ISO_C_BINDING
 CHARACTER(C_CHAR) :: text(*)
 END
!
 SUBROUTINE argInit(iptr, d, i1, i2, i3, i4) BIND(C, NAME = 'argInit')
 USE, INTRINSIC :: ISO_C_BINDING
 TYPE(C_PTR), VALUE :: iptr
 REAL(C_DOUBLE)      , VALUE :: d
 INTEGER(C_INT)     , VALUE :: i1, i2, i3, i4
 END
!
 REAL(C_DOUBLE) FUNCTION arUtilTimer() BIND(C, NAME = 'arUtilTimer')
 USE, INTRINSIC :: ISO_C_BINDING
 END FUNCTION arUtilTimer
END INTERFACE
CONTAINS
!-------------------------------------------------
SUBROUTINE init() BIND(C)
USE, INTRINSIC :: ISO_C_BINDING
USE opengl_gl
USE opengl_glu
USE opengl_glut
IMPLICIT NONE
TYPE(t_ARParam) :: wparam
CHARACTER (LEN = 35) :: vconf = "Data/WDM_camera_flipV.xml" // c_null_char
CHARACTER (LEN = 35) :: cparam_name = "Data/camera_para.dat" // c_null_char
CHARACTER (LEN = 35) :: patt_name   = "Data/patt.hiro"       // c_null_char
!   /* open the video path */
IF( arVideoOpen( vconf ) < 0 ) STOP
!    /* find the size of the window */
IF( arVideoInqSize( ixsize, iysize ) < 0 ) STOP
PRINT *, "Image size (x,y) = ", ixsize, iysize
!    /* set the initial camera parameters */
IF ( arParamLoad( cparam_name, 1, wparam ) < 0 ) THEN
 PRINT *, "Camera parameter load error !!"
 STOP
END IF
CALL arParamChangeSize( wparam, ixsize, iysize, cparam )
CALL arInitCparam( cparam )
PRINT *, "*** Camera Parameter ***"
CALL arParamDisp( cparam )
ipatt_id = arLoadPatt( patt_name )
IF ( ipatt_id < 0 ) THEN
 PRINT *, "pattern load error !!"
 STOP
END IF
!    /* open the graphics window */
CALL argInit( C_LOC(cparam), 1.0_c_double, 0, 0, 0, 0 )
RETURN
END SUBROUTINE init
!-------------------------------------------------
SUBROUTINE mainLoop() BIND(C, NAME = 'mainLoop')
IMPLICIT NONE
INTEGER(C_INTPTR_T) :: dataPtr
TYPE(t_ARMarkerInfo), POINTER:: marker_info(:)
INTEGER(C_INT) :: marker_num
INTEGER(C_INT) :: j, k
LOGICAL, SAVE :: qfirst = .TRUE.
IF (qfirst) THEN
 ALLOCATE(marker_info(50)) ! ?
 qfirst = .FALSE.
END IF
dataPtr = arVideoGetImage()
IF (dataPtr == 0) THEN
 CALL arUtilSleep(2)
 RETURN
END IF
IF (icount == 0) CALL arUtilTimerReset()
icount = icount + 1
CALL argDrawMode2D()
CALL argDispImage( dataPtr, 0, 0 )
IF ( arDetectMarker( dataPtr, ithresh, marker_info, marker_num ) < 0 ) THEN
 CALL cleanup()
 RETURN
END IF
CALL arVideoCapNext()
k = -1
DO j = 1, marker_num
 IF (ipatt_id == marker_info(j)%id) THEN
  IF (k == -1) THEN
   k = j
  ELSE
   IF (marker_info(k)%cf < marker_info(j)%cf ) k = j
  END IF
 END IF
END DO
IF ( k == -1 ) THEN
 CALL argSwapBuffers()
 RETURN
END IF
! draw-main
CALL arGetTransMat( C_LOC(marker_info(k)), patt_center, patt_width, patt_trans )
CALL draw()
CALL argSwapBuffers()
RETURN
END SUBROUTINE mainLoop
!-------------------------------------------------
SUBROUTINE cleanup() BIND(C)
USE, INTRINSIC :: ISO_C_BINDING
USE opengl_gl
USE opengl_glu
USE opengl_glut
IMPLICIT NONE
CALL arVideoCapStop()
CALL arVideoClose()
CALL argCleanup()
RETURN
END SUBROUTINE cleanup
!-------------------------------------------------
SUBROUTINE keyEvent( key, ix, iy ) BIND(C, NAME = 'keyEvent')
USE, INTRINSIC :: ISO_C_BINDING
USE opengl_gl
USE opengl_glu
USE opengl_glut
IMPLICIT NONE
INTEGER(C_SIGNED_CHAR), VALUE :: key
INTEGER(C_INT)        , VALUE :: ix, iy
IF (key == 27) THEN
  PRINT *, "*** ", icount / arUtilTimer(), "(frame/sec)"
  CALL cleanup()
  STOP
END IF
RETURN
END SUBROUTINE keyEvent
!---------------------------------------------------------------
SUBROUTINE draw() BIND(C)
USE, INTRINSIC :: ISO_C_BINDING
USE opengl_gl
USE opengl_glu
USE opengl_glut
IMPLICIT NONE
REAL(gldouble) :: gl_para(4, 4)
REAL(glfloat ) :: mat_ambient(4) = [ 0.0_glfloat, 0.0_glfloat, 1.0_glfloat, 1.0_glfloat ]
REAL(glfloat ) :: mat_flash(4)   = [ 0.0_glfloat, 0.0_glfloat, 1.0_glfloat, 1.0_glfloat ]
REAL(glfloat ) :: mat_flash_shiny(1) = [ 50.0 ]
REAL(glfloat ) :: ambi(4)            = [ 0.1_glfloat, 0.1_glfloat, 0.1_glfloat, 0.1_glfloat ]
REAL(glfloat ) :: lightZeroColor(4)  = [ 1.0_glfloat, 0.0_glfloat, 0.0_glfloat, 0.1_glfloat ]
REAL(glfloat ), PARAMETER :: a = 10.0_glfloat, b = 28.0_glfloat, &
                              c =  8.0_glfloat / 3.0_glfloat, d = 0.01_glfloat
! shadow
REAL(gldouble) :: shadowMatrix(4, 4), plane(4)
REAL(glfloat ), SAVE :: xl = 40.0_glfloat, yl = -40.0_glfloat, zl = 80.0_glfloat, wl = 0.0_glfloat
!
! Lorenz
REAL(glfloat ) :: x, y, z
REAL(glfloat ), SAVE :: dx(3000), dy(3000), dz(3000)
INTEGER :: i
LOGICAL, SAVE :: first = .TRUE.
!
! Lorenz attractor
IF (first) THEN
 first = .FALSE.
 x = 1.0_glfloat
 y = 1.0_glfloat
 z = 1.0_glfloat
 DO i = 1, 3000
  dx(i) = d * ( a * (y - x)     )
  dy(i) = d * ( x * (b - z) - y )
  dz(i) = d * ( x * y - c * z   )
  x = x + dx(i)
  y = y + dy(i)
  z = z + dz(i)
 END DO
END IF
!
CALL argDrawMode3D()
CALL argDraw3dCamera( 0, 0 )
CALL glClearDepth( 1.0_gldouble )
CALL glClear(GL_DEPTH_BUFFER_BIT)
CALL glEnable(GL_DEPTH_TEST)
CALL glDepthFunc(GL_LEQUAL)
CALL argConvGlpara(patt_trans, gl_para) ! /* load the camera transformation matrix */
CALL glMatrixMode(GL_MODELVIEW)
CALL glLoadMatrixd( gl_para )
CALL glLightfv(GL_LIGHT0, GL_POSITION, [xl, yl, zl, wl]) ! light_position
CALL glLightfv(GL_LIGHT0, GL_AMBIENT , ambi)
CALL glLightfv(GL_LIGHT0, GL_DIFFUSE , lightZeroColor)
CALL glMaterialfv(GL_FRONT, GL_SPECULAR , mat_flash)
CALL glMaterialfv(GL_FRONT, GL_SHININESS, mat_flash_shiny)
CALL glMaterialfv(GL_FRONT, GL_AMBIENT  , mat_ambient)
CALL glMatrixMode(GL_MODELVIEW)
!
! Scaling
!
CALL glScalef( 2.0, 2.0, 2.0)
!
! light   position = [xl, yl, zl, wl]
!
CALL glPushMatrix()
CALL glPushAttrib(GL_LIGHTING_BIT)
CALL glColor3f(1.0_glfloat, 0.0_glfloat, 0.1_glfloat)
CALL glTranslatef( xl, yl, zl )
CALL glutSolidSphere(2.0_gldouble, 10, 10)
CALL glPopAttrib()
CALL glPopMatrix()
!
! Shadow
!
plane = [ 0.0_gldouble,   0.0_gldouble,  1.0_gldouble,  0.0_gldouble] ! plane normal
CALL glPushMatrix()
CALL projectShadowMatrix(shadowMatrix, plane, [xl, yl, zl, wl])
CALL glMultMatrixd(shadowMatrix)
CALL glTranslatef(-xl * ABS(xl / zl), -yl * ABS(yl / zl), 0.0)   ! ?
!
CALL glBegin(GL_LINE_STRIP)
CALL glColor3f(0.1_glfloat, 0.1_glfloat, 0.1_glfloat)
DO i = 1, 3000
 CALL glTranslatef( dx(i), dy(i), dz(i) )
 IF (i > 100) THEN
  CALL glutSolidCube(1.0_gldouble)
 END IF
END DO
CALL glPopMatrix()
!
! Object
!
CALL glEnable(GL_LIGHTING)
CALL glEnable(GL_LIGHT0)
CALL glPushMatrix()
DO i = 1, 3000
 CALL glTranslatef( dx(i), dy(i), dz(i) )
 IF (i > 100) THEN
  CALL glutSolidCube(1.0_gldouble )
 END IF
END DO
CALL glPopMatrix()
CALL glDisable( GL_LIGHTING )
CALL glDisable( GL_DEPTH_TEST )
!
RETURN
END SUBROUTINE draw
!-------------------------------------------------------------
SUBROUTINE projectShadowMatrix(sm, plane, light)
REAL(gldouble), INTENT(OUT) :: sm(:, :)
REAL(gldouble), INTENT(IN ) :: plane(:)
REAL(glfloat ), INTENT(IN ) :: light(:)
REAL(gldouble) :: dot
INTEGER :: i
dot = DOT_PRODUCT(plane, REAL(light, gldouble))
DO i = 1, 4
 sm(:, i) = -REAL(light(:), gldouble) * plane(i)    ! |light><plane|   4x4 Tensor
END DO
DO i = 1, 4
 sm(i, i) = dot + sm(i, i)                          ! <plane|light> I  dot_product * diagonal Matrix
END DO
RETURN
END SUBROUTINE projectShadowMatrix
!-------------------------------------------------------------
END MODULE m_ART
!=====================================================
PROGRAM shadow
USE m_art
IMPLICIT NONE
CALL glutInit()
CALL init()
CALL arVideoCapStart()
CALL argMainLoop( 0, C_FUNLOC(keyEvent), C_FUNLOC(mainLoop) )
STOP
END PROGRAM shadow

fortran66のブログ

fortran について書きます。

ARToolKit でローレンツ・アトラクターに影をつける。
