Fortran で CUDA その2  台形積分

またぞろ簡単素朴な積分をやってみます。
4  \int_0^1 {1\over 1+x^2}dx = \pi
を計算します。f(x)={1\over 1+x^2}GPU の各スレッドごとに異なる x について計算してもらって、積分範囲全域での被積分関数の値を配列に一気に返してもらいます。

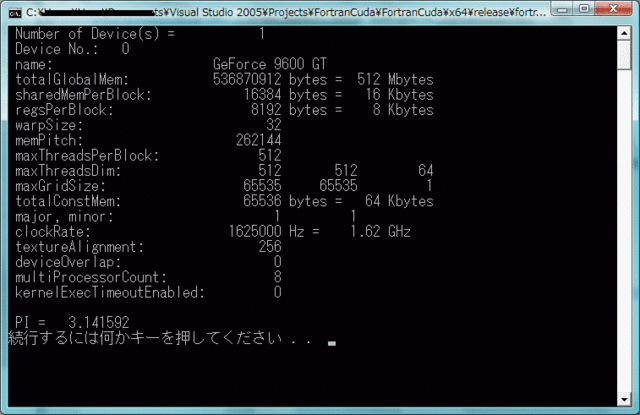

実行結果

Fortran ソース

前半は Fortran 側で CUDA ルーチンを直接呼んで、ビデオカードの情報を得ています。

後半では、簡単な台形積分をやって π を求めています。各積分点ごとのローレンツ型関数の値を GPU 側でスレッド並列で計算し配列に返してもらいます。簡単のため CPU側(Fortran 側)で総和処理をしています。

h を渡したのに使ってないとか、色々無駄がありますが勘弁してもらって・・

MODULE m_cuda
USE, INTRINSIC :: ISO_C_BINDING
IMPLICIT NONE
!
TYPE, BIND(C) :: t_cudaDeviceProp
 CHARACTER (256) :: name
 INTEGER(C_LONG_LONG) :: totalGlobalMem     ! t_size = C_LONG_LONG = 8bytes
 INTEGER(C_LONG_LONG) :: sharedMemPerBlock
 INTEGER(C_INT) :: regsPerBlock
 INTEGER(C_INT) :: warpSize
 INTEGER(C_LONG_LONG) :: memPitch
 INTEGER(C_INT) :: maxThreadsPerBlock
 INTEGER(C_INT) :: maxThreadsDim(3)
 INTEGER(C_INT) :: maxGridSize(3)
 INTEGER(C_INT) :: clockRate
 INTEGER(C_LONG_LONG) :: totalConstMem
 INTEGER(C_INT) :: major
 INTEGER(C_INT) :: minor
 INTEGER(C_LONG_LONG) :: textureAlignment
 INTEGER(C_INT) :: deviceOverlap
 INTEGER(C_INT) :: multiProcessorCount
 INTEGER(C_INT) :: kernelExecTimeoutEnabled
 INTEGER(C_INT) :: cudaReserved(39)
END TYPE
!
INTERFACE
 SUBROUTINE cudaGetDeviceCount(n) BIND(C, name='cudaGetDeviceCount')
 INTEGER, INTENT(OUT) :: n
 END SUBROUTINE cudaGetDeviceCount
!
 INTEGER FUNCTION cudaGetDeviceProperties(cudaDeviceProp, idev) BIND(C, name='cudaGetDeviceProperties')
 USE, INTRINSIC :: ISO_C_BINDING
 IMPORT
 TYPE (t_cudaDeviceProp), INTENT(OUT) :: cudaDeviceProp
 INTEGER, VALUE, INTENT(IN) :: idev
 END FUNCTION cudaGetDeviceProperties
!
 INTEGER FUNCTION cudaSetDevice(idev) BIND(C, name='cudaSetDevice')
 INTEGER, VALUE, INTENT(IN) :: idev
 END FUNCTION cudaSetDevice
END INTERFACE
END MODULE m_cuda
!======================================================
PROGRAM CudaTest
USE, INTRINSIC :: ISO_C_BINDING
USE :: m_cuda
IMPLICIT NONE
!
INTERFACE
 SUBROUTINE cudafunction(n, h, c) BIND(C, name='cudafunction')
 USE, INTRINSIC :: ISO_C_BINDING
 IMPORT
 INTEGER      , INTENT(IN) :: n
 REAL (C_FLOAT), INTENT(IN) :: h
 REAL (C_FLOAT), INTENT(OUT):: c(N)
 END SUBROUTINE cudafunction
END INTERFACE
!
TYPE (t_cudaDeviceProp) :: prop
!
!define length of the array
INTEGER, PARAMETER :: N = 1024
!
REAL (C_FLOAT) :: c(N)
REAL :: s, h
INTEGER :: i, idev, ndev, iret
!
CALL cudaGetDeviceCount(ndev)
PRINT *, 'Number of Device(s) =', ndev
DO idev = 0, ndev - 1
 iret = cudaGetDeviceProperties(prop, idev)
 IF (iret /= 0) THEN
  PRINT '(a, i6)', 'cudaGetDeviceProperties: error code = ', iret
  STOP
 END IF
 PRINT '(1x, a, i4)', 'Device No.:', idev
 PRINT '(1x, a, a  )', 'name:                     ', prop%name( 1:INDEX(prop%name, ACHAR(0)) - 1 )
 PRINT '(1x, a25, i10, a, i5, a)', 'totalGlobalMem:          ', prop%totalGlobalMem, ' bytes =', &
                                     prop%totalGlobalMem / 2**20, ' Mbytes'
 PRINT '(1x, a25, i10, a, i5, a)', 'sharedMemPerBlock:       ', prop%sharedMemPerBlock, ' bytes =', &
                                     prop%sharedMemPerBlock / 2**10, ' Kbytes'
 PRINT '(1x, a25, i10, a, i5, a)', 'regsPerBlock:            ', prop%regsPerBlock, ' bytes =', &
                                     prop%regsPerBlock / 2**10, ' Kbytes'
 PRINT '(1x, a25, i10)', 'warpSize:                ', prop%warpSize
 PRINT '(1x, a25, i10)', 'memPitch:                ', prop%memPitch
 PRINT '(1x, a25, i10)', 'maxThreadsPerBlock:      ', prop%maxThreadsPerBlock
 PRINT '(1x, a25, 3i10)', 'maxThreadsDim:           ', prop%maxThreadsDim
 PRINT '(1x, a25, 3i10)', 'maxGridSize:             ', prop%maxGridSize
 PRINT '(1x, a25, i10, a, i5, a)', 'totalConstMem:           ', prop%totalConstMem, ' bytes =', &
                                     prop%totalConstMem / 2**10, ' Kbytes'
 PRINT '(1x, a25, 2i10)', 'major, minor:            ', prop%major, prop%minor
 PRINT '(1x, a25, i10, a, f8.2, a)', 'clockRate:               ', prop%clockRate, ' Hz =', &
                                     prop%clockRate / 1.0e6, ' GHz'
 PRINT '(1x, a25, i10)', 'textureAlignment:        ', prop%textureAlignment
 PRINT '(1x, a25, i10)', 'deviceOverlap:           ', prop%deviceOverlap
 PRINT '(1x, a25, i10)', 'multiProcessorCount:     ', prop%multiProcessorCount
 PRINT '(1x, a25, i10)', 'kernelExecTimeoutEnabled:', prop%kernelExecTimeoutEnabled
 PRINT *
END DO
idev = 0
iret = cudaSetDevice(idev)
IF (iret /= 0) THEN
 PRINT *, 'cudaSetDevice: error code =', iret
 STOP
END IF
!
h = (1.0 - 0.0) / (N - 1)
! Fortran -> C -> CUDA ->C ->Fortran
CALL cudafunction(N, h, c)
!
!print *, c
!
s = h * ( SUM(c) - 0.5 * (c(1) + c(N)) ) ! Trapezoidal integral : Int_0^1  1/ (1 + x^2) dx = pi / 4
PRINT *, 'PI =', s * 4.0
STOP
END PROGRAM CudaTest

CU ソース

#include <stdio.h>
#include "cuda.h"


/* Define CUDA kernel that squares the input complex array */
__global__ void  lorentz(float *in, float *out, int N)
{
 unsigned int index = blockIdx.x * blockDim.x + threadIdx.x;
 float x = (float) index / (float) (N - 1);
 if( index<N )
  {
   out[index] = 1.0 / (1.0 + x * x);
  }

}


/*
   Fortran subroutine arguments are passed by references.
   call fun( array_a, array_b, N) will be mapped to
   function (*a, *b, *N);
*/
extern "C" void cudafunction(int *Np, float *h, float *a)
{
  int block_size=4;
  float *a_d;
  int N=*Np;
  /* Allocate complex array on device */
  cudaMalloc ((void **) &a_d , sizeof(float)*N);

//  /* Copy array from host memory to device memory */
//  cudaMemcpy( a_d, a,  sizeof(float)*N   ,cudaMemcpyHostToDevice);

  /* Compute execution configuration */
   dim3 dimBlock(block_size);
   dim3 dimGrid (N/dimBlock.x);
   if( N % block_size != 0 ) dimGrid.x+=1;

  /* Execute the kernel */
  lorentz<<<dimGrid, dimBlock>>>(a_d, a_d, N);

  /* Copy the result back */
   cudaMemcpy( a, a_d, sizeof(float) * N, cudaMemcpyDeviceToHost );

  /* Free memory on the device */
  cudaFree(a_d);

  return;
}
